Power Conversion
System (PCS)

Bidirectional DC/AC power conversion for battery energy storage systems. From compact 30kW modules to utility-scale 3.45MW cabinets — modular, scalable and grid-ready. Designed and manufactured by Forte.

Bidirectional 30kW – 3.45MW Modular 1500Vdc IP66
Scalable Architecture
High Efficiency >98%
Fast Response <20ms
Grid-Ready
Energy Storage — Power Conversion

The core of every
BESS installation

The PCS (Power Conversion System) is the critical link between battery storage and the electrical grid. It handles bidirectional DC/AC conversion — charging batteries from the grid or solar, and discharging stored energy back to the load or grid on demand.

Forte PCS systems feature a fully modular architecture. Start with a single 105kW cabinet and scale to 100MW+ by adding modules and cabinets — without redesigning the system. Every module is hot-swappable for maximum uptime.

With integrated EMS (Energy Management System), MPPT solar inputs, and on/off-grid switching within 20ms, Forte PCS delivers a complete power conversion solution for commercial, industrial and utility-scale energy storage.

30kW – 3.45MW Bidirectional DC/AC <20ms Transfer 1500Vdc IP54 / IP66
Download Brochure

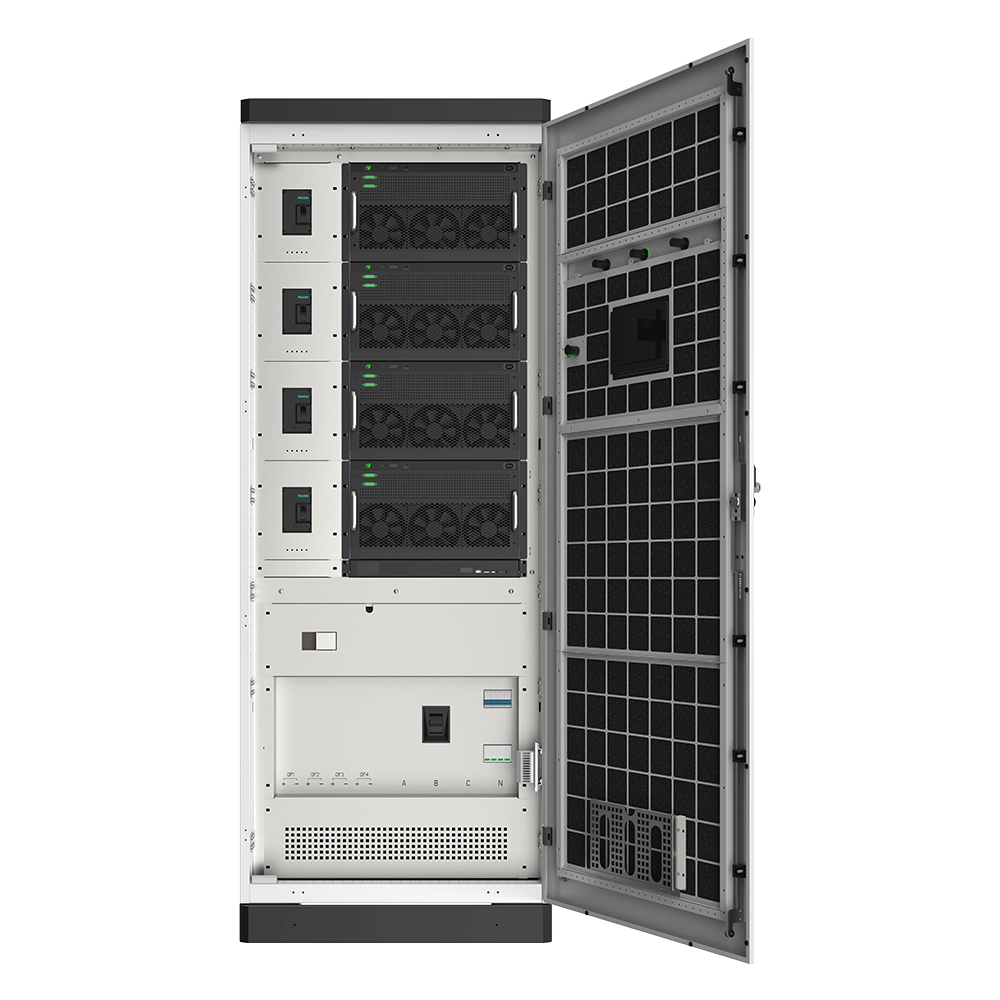

Forte PCS Cabinet — 500kW Power Conversion System

Battery Range

250V – 1500V DC
3.45 MW
Maximum single
cabinet capacity
>98%
Peak conversion
efficiency
<20 ms
On/off-grid
transfer time
100 MW+
Scalable system
capacity
Product Range

PCS Cabinets — From Commercial to Utility Scale

Select the right PCS cabinet size for your project. All cabinets share the same modular architecture and can be combined for larger installations.

Hybrid Cabinet

105/125kW PCS

DC-Coupled
  • 4 x 50kW MPPT solar inputs
  • 105kW or 125kW PCS module
  • 250kW STS (Static Transfer Switch)
  • Integrated EMS
  • On/off-grid switching <20ms
TopologyDC-Coupled Hybrid
Solar Input4 x 50kW MPPT
AC Output105 / 125 kW
Hybrid Cabinet

250kW PCS

Dual Module
  • 4 x 50kW DC/DC converter inputs
  • 2 x 105/125kW PCS modules
  • Integrated EMS
  • Battery range 250V – 750V DC
  • Parallel operation capable
TopologyDual-Module Hybrid
Battery DC250V – 750V
AC Output250 kW
Compact Cabinet

105/125kW PCS

IP54
  • Single 105kW or 125kW PCS module
  • Compact IP54-rated enclosure
  • Bidirectional DC/AC conversion
  • Standalone or parallel deployment
  • Minimal footprint
ProtectionIP54
Module1 x 105/125kW
AC Output105 / 125 kW
Industrial Cabinet

500kW PCS

Modular
  • 4 x 125kW PCS modules
  • 1, 2 or 4 battery group configurations
  • Hot-swappable modules
  • Modular redundancy
  • Scalable for larger arrays
Modules4 x 125kW
Battery Groups1 / 2 / 4
AC Output500 kW
Industrial Cabinet

1 MW PCS

Modular
  • 8 x 125kW PCS modules
  • 1, 2, 4 or 8 battery group configurations
  • Hot-swappable modules
  • N+1 redundancy option
  • Ideal for C&I and utility sites
Modules8 x 125kW
Battery Groups1 / 2 / 4 / 8
AC Output1,000 kW
Utility Scale

3.45 MW PCS

1500Vdc
  • 16 x 215kW PCS modules
  • 1500Vdc battery interface
  • IP66 outdoor rated
  • Scalable to 100MW+
  • Utility grid-code compliant
Modules16 x 215kW
Battery DC1500Vdc
ProtectionIP66
Key Components

Modular Building Blocks

Every PCS cabinet is assembled from standardized, field-replaceable modules. Each component is designed for maximum efficiency and serviceability.

30kW PCS Module

With Integrated STS

Compact bidirectional DC/AC module with built-in static transfer switch for seamless on/off-grid transitions.

105/125kW PCS Module

Bidirectional DC/AC

Mid-range power conversion module. Bidirectional operation for charging and discharging battery systems at high efficiency.

215kW PCS Module

High Performance

High-power module for utility-scale 1500Vdc systems. Designed for the 3.45MW cabinet and large-scale BESS deployments.

50/63kW DC/DC Module

MPPT & Voltage Boosting

Maximum power point tracking for solar inputs and battery voltage boosting. Essential for hybrid PV+storage systems.

200/500kW STS

Static Transfer Switch

Handles on-grid to off-grid transfer in under 20ms. Ensures uninterrupted power supply during grid disturbances.

EMS

Energy Management System

Intelligent energy management with real-time optimization, peak shaving, load shifting and grid interaction control.

Key Features

Why Forte PCS

Engineered for reliability, efficiency and seamless grid integration in the most demanding energy storage applications.

Modular & Scalable

Start with a single cabinet and scale to 100MW+ by adding modules. Standardized building blocks simplify design, procurement and maintenance across any project size.

High Efficiency >98%

Advanced IGBT topology and intelligent switching algorithms deliver peak conversion efficiency above 98%, maximizing the economic value of every stored kilowatt-hour.

Fast Grid Transfer <20ms

Integrated STS enables seamless on-grid to off-grid switching in under 20 milliseconds — ensuring uninterrupted power supply during grid faults or blackouts.

Hot-Swappable Modules

Replace individual PCS modules without shutting down the entire cabinet. N+1 redundancy options ensure continued operation during maintenance.

IP54 / IP66 Protection

Outdoor-rated enclosures with IP54 or IP66 protection class for harsh environments. Corrosion-resistant materials and active thermal management for reliable year-round operation.

Integrated EMS & Monitoring

Built-in energy management system with real-time monitoring, SCADA integration, Modbus TCP/RTU and remote diagnostics for full visibility and control.

Technical Specifications

PCS — Key Parameters

Overview of critical specifications across the Forte PCS product range.

ParameterSpecification
ProductForte PCS — Power Conversion System
TopologyBidirectional DC/AC (battery ↔ grid)
Cabinet range105kW · 125kW · 250kW · 500kW · 1MW · 3.45MW
PCS module sizes30kW · 105kW · 125kW · 215kW
DC/DC module sizes50kW · 63kW (MPPT / voltage boosting)
Battery voltage (standard)250V – 750V DC
Battery voltage (utility)Up to 1500Vdc
AC output voltage380V / 400V / 480V (configurable)
Frequency50 / 60 Hz
Peak efficiency>98%
Grid transfer time<20 ms (on/off-grid via STS)
STS capacity200kW / 500kW Static Transfer Switch
Solar input (hybrid)4 × 50kW MPPT (DC-coupled)
Protection classIP54 (compact) / IP66 (utility)
CoolingForced air / liquid cooling (model dependent)
CommunicationModbus TCP/RTU, CAN, Ethernet, SCADA
EMSIntegrated energy management system
ScalabilityModular — scalable to 100MW+
Operating temperature-30°C to +55°C
CertificationsCE, IEC 62477, IEC 62109, IEC 61000
Applications

Where PCS Is Deployed

Forte PCS systems serve as the power conversion backbone for a wide range of battery energy storage applications.

⚡

Utility-Scale BESS

Grid-connected battery storage for frequency regulation, peak shaving and energy arbitrage at transmission level.

☀

Solar + Storage

DC-coupled PV integration with MPPT inputs. Maximize self-consumption and store excess solar generation.

🏭

Commercial & Industrial

Peak demand reduction, load shifting and backup power for factories, data centers and commercial facilities.

🔌

Microgrids

On/off-grid operation with <20ms transfer. Ideal for island grids, remote communities and critical infrastructure.

🌊

Renewable Integration

Smooth intermittent wind and solar output. Provide ramp rate control and voltage support for grid stability.

🚈

EV Charging Hubs

Buffer grid demand from fast chargers. Reduce transformer and connection capacity requirements.

💧

Mining & Oil/Gas

Reliable off-grid power conversion for remote sites. Reduce diesel generator dependency with BESS integration.

⛏

Frequency Regulation

Fast-responding bidirectional power for ancillary services. Millisecond-level response for grid frequency support.
