Every project begins
with data

Forte's measurement service provides a complete picture of your facility's electrical health. Using the HIOKI PQ3198-94 — an IEC 61000-4-30 Class A power quality analyzer — our engineers capture every detail: reactive power demand, harmonic spectrum, voltage events, flicker, power factor trends and load profiles.

The measurement campaign runs continuously for a extended period, covering all operational scenarios — peak production, shift changes, weekend operation and idle periods. The result is a comprehensive dataset that reveals the root cause of power quality issues and enables precise system sizing.

Measurement service is available as a standalone paid service. For customers who proceed with a Forte compensation system order, the measurement fee is fully waived.
IEC 61000-4-30 Class A HIOKI PQ3198-94 7-Day Recording Up to 50th Harmonic Flicker (Pst/Plt)
Download Sample Report
HIOKI PQ3198-94 Power Quality Analyzer
50th
Harmonic order analysis (V & I)
24/7
Continuous recording
5000A
Maximum current measurement via flex CT
Class A
IEC 61000-4-30 compliance
What We Measure

Comprehensive Power Quality Analysis

Six critical dimensions of power quality, captured simultaneously with the HIOKI PQ3198-94 across all phases.

Harmonic Analysis (2nd–50th)

Individual harmonic measurement up to 50th order for both voltage and current. THD calculation, inter-harmonics, and K-factor for transformer loading assessment. Identify which loads are injecting distortion.

Reactive Power & Power Factor

Continuous cos φ and tan φ profiling across all load conditions. Displacement and true power factor (DPF & TPF). Capacitive/inductive reactive power demand with time-of-day analysis for optimal system sizing.

Voltage Quality Events

Detection and time-stamped logging of voltage sags, swells, interruptions and transients per IEC 61000-4-30. RMS variation tracking and event classification for root cause analysis.

Flicker Measurement

Short-term (Pst) and long-term (Plt) flicker severity measurement per IEC 61000-4-15. Critical for arc furnace environments and facilities near sensitive loads.

Load & Demand Profiling

Active (kW), reactive (kVAr) and apparent power (kVA) profiling over 7+ days. Peak demand identification, load factor calculation and demand trend analysis for compensation sizing.

Inrush & Transient Capture

High-speed transient capture for motor starting, transformer energization and capacitor switching events. Inrush current recording helps identify equipment stress points.

Professional-Grade Equipment

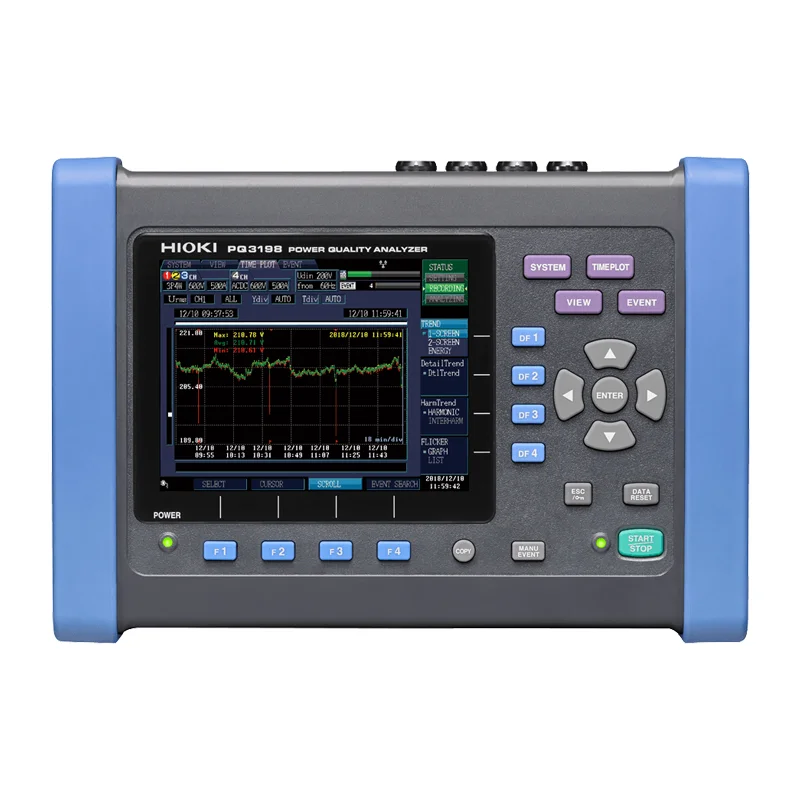

HIOKI PQ3198-94 Power Quality Analyzer

Every Forte measurement is performed with the HIOKI PQ3198-94 — a portable, field-rated power quality analyzer trusted by utilities and industrial facilities worldwide.

ComplianceIEC 61000-4-30 Class A
VoltageUp to 6000V AC (with probes)
CurrentUp to 5000A (flexible CT)
Channels4 simultaneous (3φ + N)
HarmonicsUp to 50th order
FlickerPst / Plt per IEC 61000-4-15
EventsSag, swell, interruption, transient
Recording7+ days continuous, SD card + USB
ProtectionIP54 field-rated
GPSTime synchronization
HIOKI PQ3198-94
Our Process

From Site Visit to Solution Report

A structured four-step process that ensures accurate measurement, thorough analysis, and actionable recommendations.

1

Pre-Assessment & Planning

Initial consultation to understand your facility's electrical topology, identify measurement points (main incoming, critical feeders, problematic loads) and plan the campaign schedule.

2

Equipment Installation

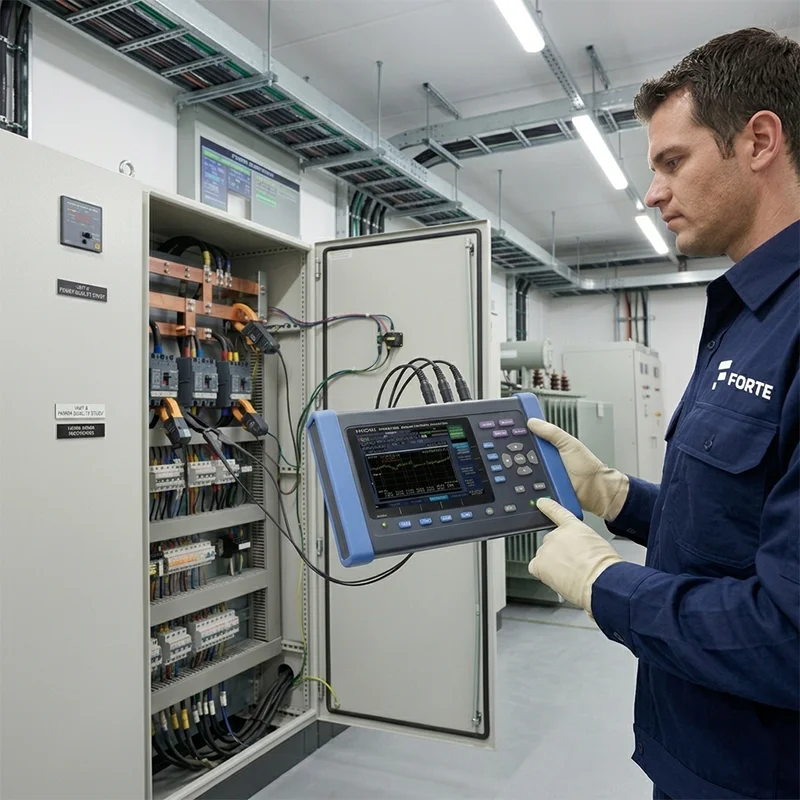

Our engineers install the HIOKI PQ3198-94 at designated measurement points with flexible CT clamps. Non-invasive — no shutdown required. GPS time sync ensures accurate timestamps.

3

Continuous Recording

Continuous recording covering all operational scenarios: peak production, night shifts, weekends and idle periods. Real-time remote monitoring ensures data integrity throughout.

4

Analysis & Reporting

Detailed offline analysis by Forte's power quality engineers. Harmonic spectrum, PF trends, voltage events, flicker severity, load profiles — all compiled into a comprehensive report with solution recommendations and ROI estimates.

Deliverables

What You Receive

Every measurement engagement concludes with a detailed report and a face-to-face presentation of findings, ensuring full transparency and understanding.

  • Harmonic spectrum analysis (voltage & current, up to 50th order)
  • Power factor profile (displacement & true PF)
  • Voltage quality assessment (sags, swells, flicker)
  • Load profile and demand analysis
  • THD trends and peak distortion periods
  • Root cause identification for power quality issues
  • Compensation system sizing recommendation
  • Before/after simulation (expected improvement)
  • Penalty cost analysis and savings projection
  • Equipment list and budget estimate
  • ROI and payback period estimation
  • Executive summary for management review
Pricing

Flexible Pricing

Standalone Measurement

Professional power quality assessment as an independent service

  • Full on-site measurement campaign
  • Comprehensive analysis report
  • Solution recommendations
  • Budget estimate
Contact for pricing
Recommended

With Compensation Order

Measurement fee fully waived when you order a Forte compensation system

  • Everything in standalone measurement
  • Measurement fee waived (100%)
  • Priority engineering support
  • Post-installation verification measurement
Free with system order

Measurement results are valid for 12 months and can be used directly as the basis for system design and project proposal.
