GRIDFIX
Modular Power Factor
Compensation Panel

Thyristor-switched drawer design for high-speed, reliable and scalable reactive power compensation in industrial facilities.

400 – 750V Busbar ≤10 ms Response 12.5 – 100 kVAr / Step cosφ ≥ 0.99 IEC 61439-2 Form 4B IP41 · -10°C to +45°C
Hot-swap — no production stop
IEC 61439-2 Form 4B certified
≤10 ms thyristor switching
Up to 500 kVAr per panel
Plug & Play cassette modules
GRIDFIX Series

Modular Compensation
Built for Zero Downtime

The GRIDFIX Series, developed by Forte Energy, consists of reactor-based, thyristor-switched modular compensation drawers designed for the high-speed, reliable and scalable compensation needs of modern industrial facilities.

These systems maintain a stable power factor even during sudden load changes, increasing energy efficiency and extending system life. Its drawer-type design turns each stage of the system into an independent module, enabling fast maintenance and easy expansion — allowing the faulty module to be replaced without shutting down the entire system.

  • Ultra-fast thyristor switching with a ≤10 ms response time
  • Harmonic filtering with detuned reactors (%7 or %14)
  • Easy maintenance and expansion thanks to modular drawer design
  • Plug & Play modules — replacement without production downtime
  • Long-life capacitors (>250,000 hours)
  • DSP-based intelligent control ensuring continuous cosφ ≥ 0.99
  • GRIDFIX drawer panels comply with IEC 61439-2 Form 4B standard
Download Brochure

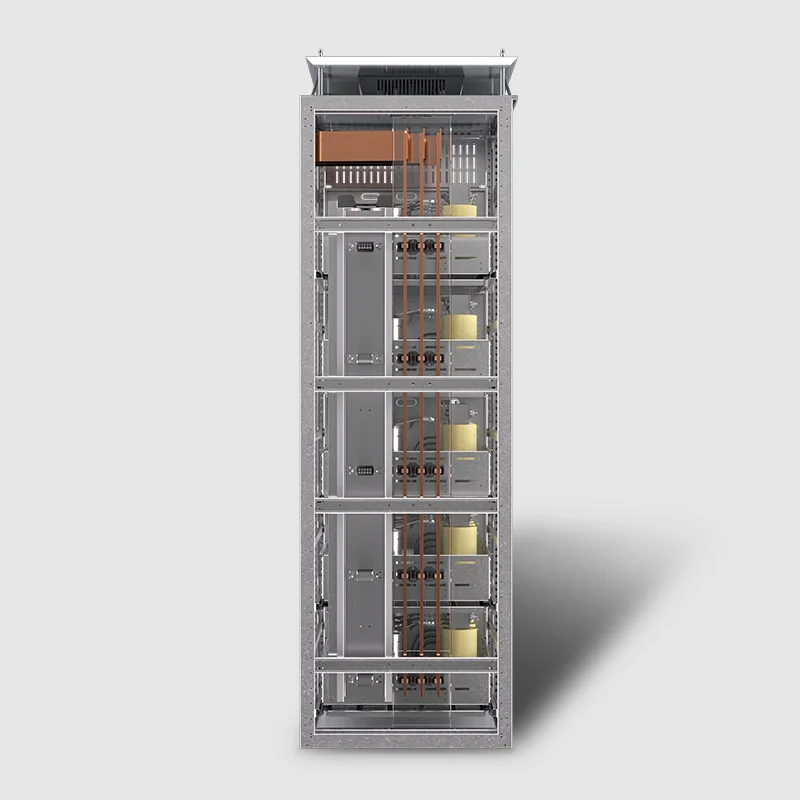

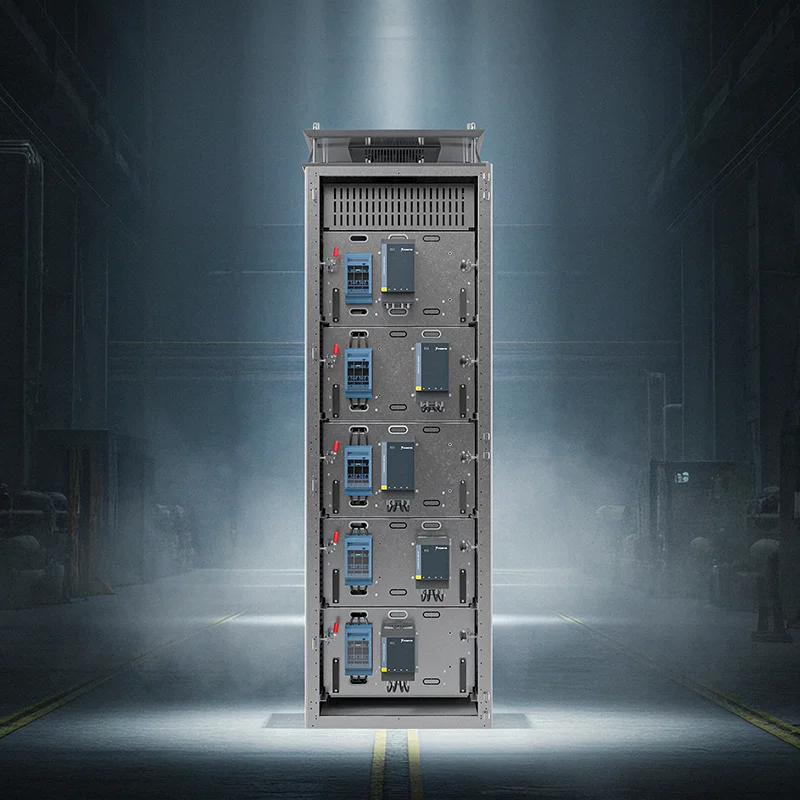

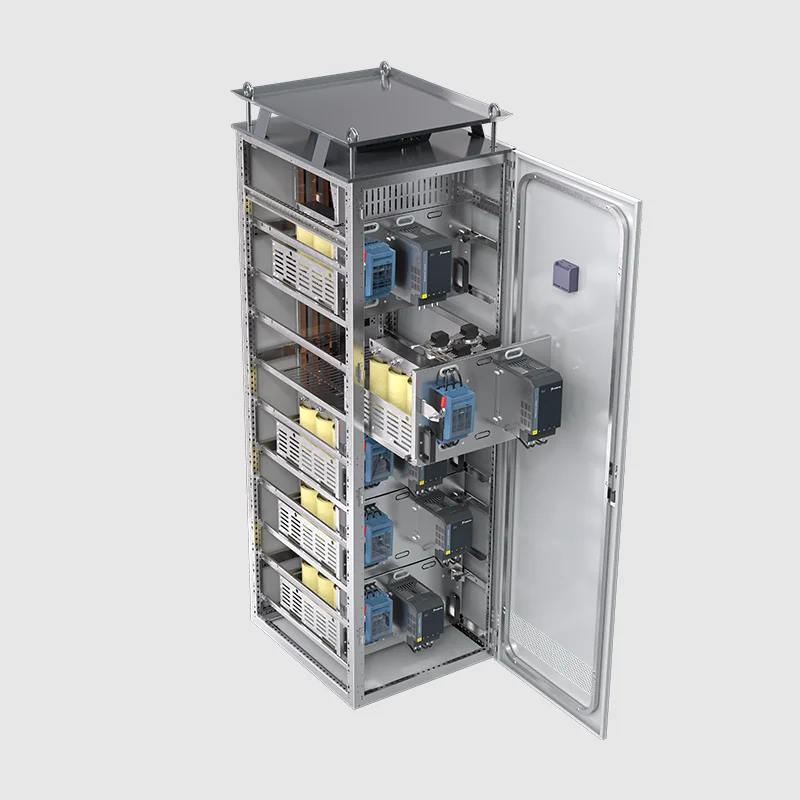

GRIDFIX Panel Front View GRIDFIX Drawer Module Detail GRIDFIX Panel Internal View
Why GRIDFIX

Modular power, dynamic performance,
uninterrupted energy.

The modular design of GRIDFIX offers safe live-step switching, easily scalable architecture, fast redundancy and simplified maintenance — providing a modern alternative to traditional compensation panels.

Uninterrupted Operation

Maintenance without stopping production. Hot-swap capability reduces production downtime by 95%. Faulty cassettes are replaced live.

Safe Intervention

Controlled and secure servicing under live power. Electrical and mechanical interlocking systems ensure maximum operator safety.

Fast Maintenance

Quick module replacement within minutes thanks to cassette-based design. Standard rail and connection system provide easy installation and access.

Technical Data

GRIDFIX Series Technical Specifications

Modular, high-speed and reliable solution engineered to meet the dynamic reactive power requirements of industrial facilities.

Switching TypeThyristor module-based semiconductor
Busbar Voltage400 / 525 / 600 / 690 / 750V (±5%)
Frequency50 Hz
Connection Type3P4W
Step Power Ratings12.5 / 25 / 50 / 75 / 100 kVAr
Reactor Detune Ratio%7 (189 Hz) or %14 (134 Hz)
Capacitor Rated Voltage525V – 900V
Operating Temperature-10°C to +45°C
Response Time≤10 ms
CoolingForced-air cooling system 220 VAC / 1250 m³/h
Power Factor Correctioncosφ ≥ 0.99
ProtectionOver-voltage, over-current, high temperature
Module Dimensions (W×H×D)50 kVAr: 595×345×480 mm  |  100 kVAr: 595×370×480 mm
Module MaterialGalvanized steel
ApplicationIndoor / Panel-mounted installation
Overcurrent Withstand110% × In
IP Protection ClassIP41
StandardsIEC 61439-1, IEC 62208, IEC 60529, IEC 62262
CapacitorDry-type, self-healing — manufactured per IEC 60831-1
ReactorDry-type resin-encapsulated — EN 61558-1 & EN 61558-2-20, TSE-certified and CE-marked
Compensation Cassette

More practical, more compact

GRIDFIX Compensation Cassettes deliver superior modularity, fast maintenance capability, easy expandability and enhanced operator safety compared to traditional fixed-step compensation panels.

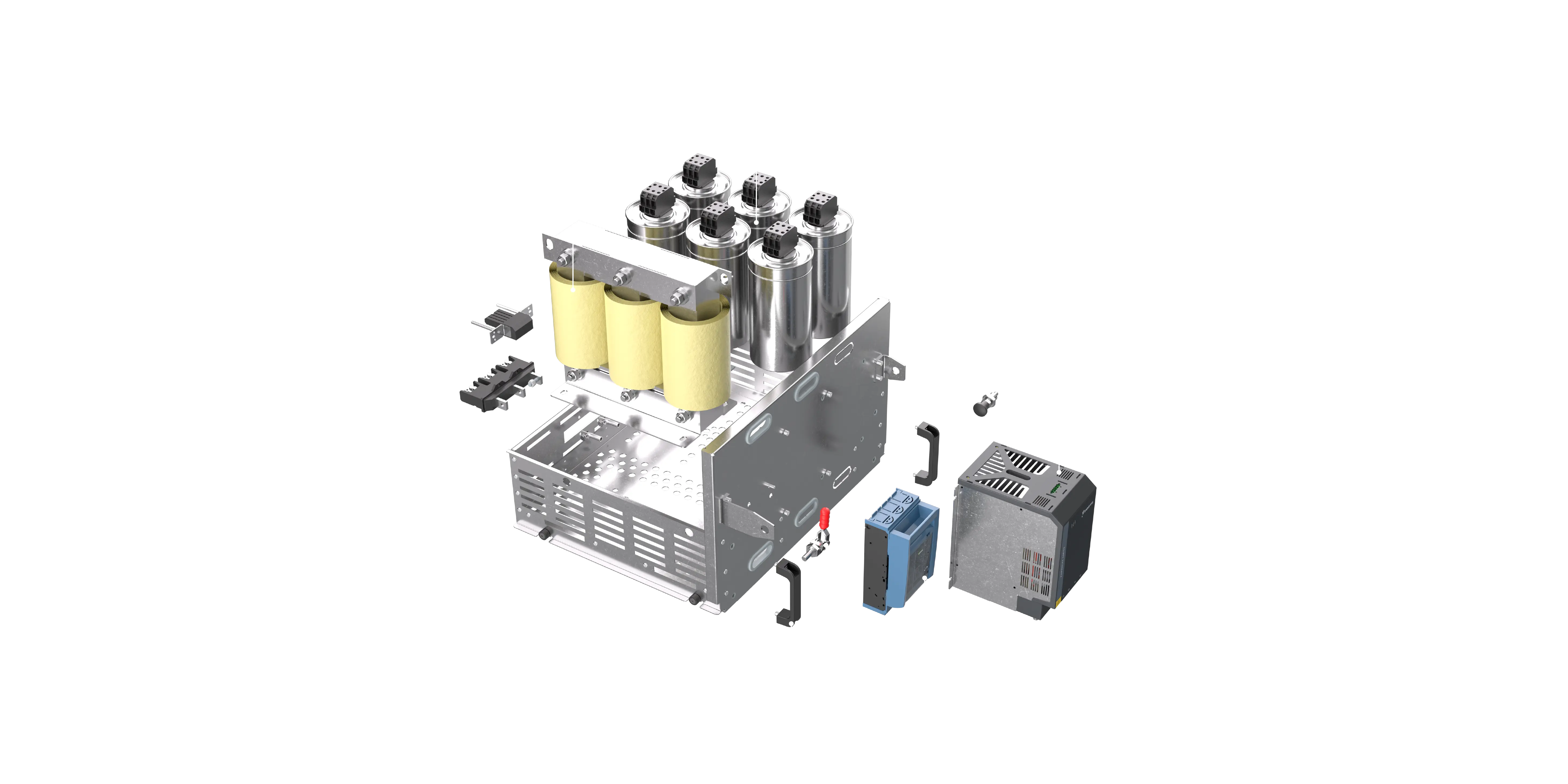

GRIDFIX Compensation Cassette — Exploded View
1
1RBP001

Busbar Socket

Provides a safe, fast and low-loss power connection between the main busbar and the drawer. High current-carrying capacity and silver-plated contact surfaces ensure maximum efficiency.

2
1RSG001

Signal Socket

Ensures flawless transmission of control and command signals, providing automatic connection when the module is inserted. Plug-and-play structure shortens maintenance time.

3
1RNH001

Fused Switch Disconnector

Protects the circuit against short circuit while enabling safe load switching under energized conditions. Arc-quenching capability elevates operational safety.

4
1RAX002

Pull-off Safety Lever

Locks the drawer module into the panel and ensures secure, full engagement. Prevents accidental pullout and maximizes technician protection during maintenance.

5
1RAX003

Pin-Guided Alignment Bracket

Provides millimetric alignment during module insertion, preventing damage to the contacts. Minimizes operator errors and simplifies installation.

6
1RAX001

Handle

Designed for ergonomic and balanced handling of drawer modules during transport or sliding operations. Enables easy maneuvering of even heavy modules.

7
1CAP001

Capacitor

Self-healing technology and over-pressure safety features ensure superior reliability in reactive power compensation. Delivers long-life performance.

8
1DR001

Detuned Reactor

Plays a critical role in meeting total harmonic distortion limits. By filtering harmonics, it improves voltage and current waveforms toward an ideal sine wave.

9
CSM100

Thyristor Switching Module

Precise semiconductor-based capacitor switching with 3 ms response time. Microprocessor-controlled with thermistor protection, LED status display and programmable fan support.

1
1RBP001

Busbar Socket

Provides a safe, fast and low-loss power connection between the main busbar and the drawer. High current-carrying capacity and silver-plated contact surfaces ensure maximum efficiency.

2
1RSG001

Signal Socket

Ensures flawless transmission of control and command signals, providing automatic connection when the module is inserted. Plug-and-play structure shortens maintenance time.

3
1RNH001

Fused Switch Disconnector

Protects the circuit against short circuit while enabling safe load switching under energized conditions. Arc-quenching capability elevates operational safety.

4
1RAX002

Pull-off Safety Lever

Locks the drawer module into the panel and ensures secure, full engagement. Prevents accidental pullout and maximizes technician protection during maintenance.

5
1RAX003

Pin-Guided Alignment Bracket

Provides millimetric alignment during module insertion, preventing damage to the contacts. Minimizes operator errors and simplifies installation.

6
1RAX001

Handle

Designed for ergonomic and balanced handling of drawer modules during transport or sliding operations. Enables easy maneuvering of even heavy modules.

7
1CAP001

Capacitor

Self-healing technology and over-pressure safety features ensure superior reliability in reactive power compensation. Delivers long-life performance.

8
1DR001

Detuned Reactor

Plays a critical role in meeting total harmonic distortion limits. By filtering harmonics, it improves voltage and current waveforms toward an ideal sine wave.

9
CSM100

Thyristor Switching Module

Precise semiconductor-based capacitor switching with 3 ms response time. Microprocessor-controlled with thermistor protection, LED status display and programmable fan support.

GRIDFIX Compensation Panel

Complete Panel Component Structure

Our GRIDFIX compensation cassette solution offers superior reliability and efficiency with its modular structure, easy installation, smooth operation and convenient serviceability.

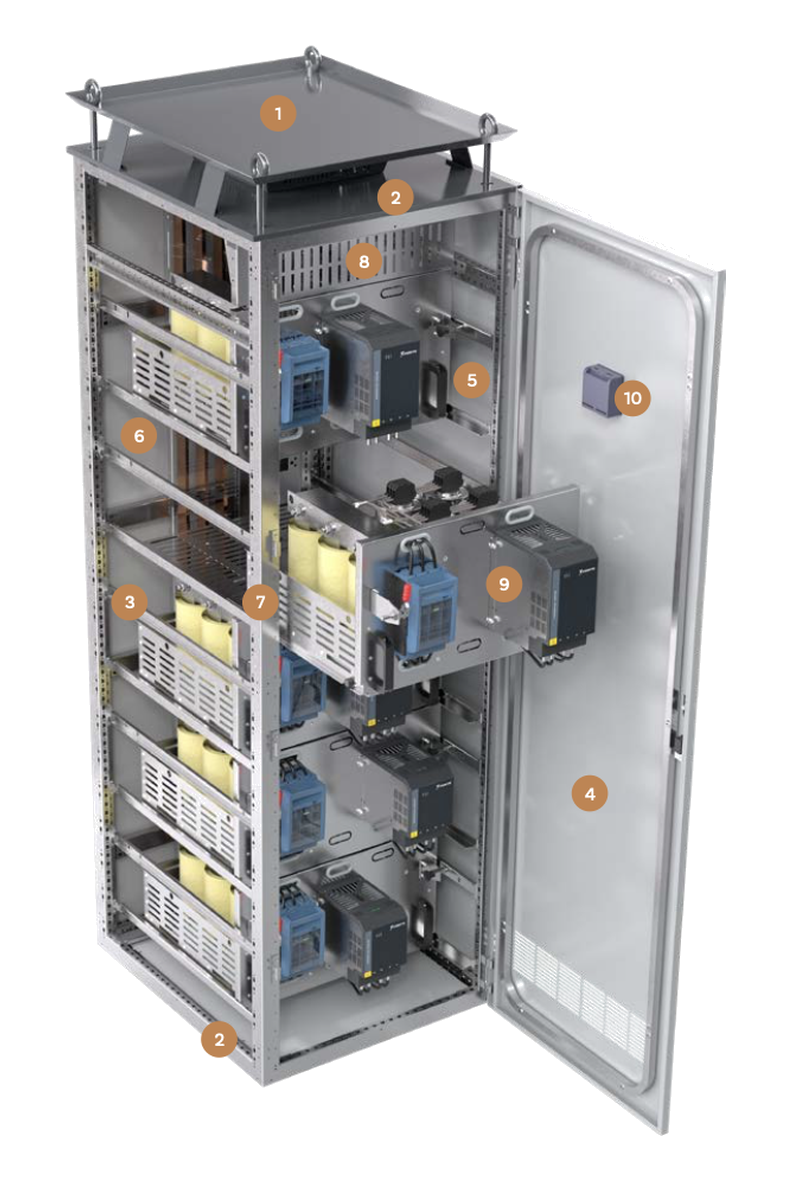

GRIDFIX Panel Component Structure
1

Roof Ventilation Unit

1CVV001
2

Top / Bottom Kit

1CS0708
3

Rail Kit

1CRL001
4

Front Door with Ventilation

1CH0722-L
5

Side Cover

1CX0822
6

Rear Cover

1CX0722
7

Panel Frame (Sheet Metal Columns)

1CC2200
8

Busbar Protection Kit

1CBB001
9

GRIDFIX Compensation Cassettes (100 kVAr)

1RC7001
10

Reactive Power Controller

1RRC001
Installation Conditions

A maximum of 5 GRIDFIX modules can be installed in a single panel

A maximum of 500 kVAr (5 × 100 kVAr) can be installed in a single panel

Bottom cable entry — standard configuration for all GRIDFIX panels

Horizontal busbar installation available for multi-section panels

Ordering Information

GRIDFIX Compensation Cassette Product Codes

Available in 400V and 690V configurations with %7 or %14 reactor detune ratios. Step ratings from 12.5 to 100 kVAr.

400V Configuration

Busbar VoltageReactor RatioNet PowerProduct Code
400VP %7 (189 Hz)12.5 kVAr1FX400V012P0701
25 kVAr1FX400V025P0701
50 kVAr1FX400V050P0701
75 kVAr1FX400V075P0701
100 kVAr1FX400V100P0701
P %14 (134 Hz)12.5 kVAr1FX400V012P1401
25 kVAr1FX400V025P1401
50 kVAr1FX400V050P1401
75 kVAr1FX400V075P1401
100 kVAr1FX400V100P1401

690V Configuration

Busbar VoltageReactor RatioNet PowerProduct Code
690VP %7 (189 Hz)12.5 kVAr1FX690V012P0701
25 kVAr1FX690V025P0701
50 kVAr1FX690V050P0701
75 kVAr1FX690V075P0701
100 kVAr1FX690V100P0701
P %14 (134 Hz)12.5 kVAr1FX690V012P1401
25 kVAr1FX690V025P1401
50 kVAr1FX690V050P1401
75 kVAr1FX690V075P1401
100 kVAr1FX690V100P1401

* For different power ratings, voltage levels or resonance frequencies (P%), please contact our sales team.

GRIDFIX

Designed for
Heavy Industry

GRIDFIX delivers the speed, safety and stability demanded by heavy industry — all within a single modular structure.

Iron & Steel Paper Cement Mining Petrochemical

Intensive and rapidly changing loads are common in heavy industrial plants. For these demanding environments, the GRIDFIX dynamic compensation solution ensures a stable power factor, reduced fault rates and high operational continuity. Its modular design minimizes maintenance time and is engineered to withstand harsh process conditions.

GRIDFIX delivers the speed, safety and stability demanded by heavy industry — all within a single modular structure. It offers short return-on-investment time, eliminates the risk of reactive penalties, protects equipment and provides energy savings.
