Passive Power Quality Systems

Modular compensation panels and high-performance components engineered for demanding industrial environments. From 12.5 kVAr to 500 kVAr per cabinet, 400V to 750V.

Flagship Product

GRIDFIX
Modular Compensation Series

The GRIDFIX Series is Forte's own-IP modular passive compensation system. Built around a unique drawer-type architecture, every stage of the system is an independent hot-swappable module — allowing maintenance and expansion without production downtime.

Designed for the harshest electrical environments — iron & steel, mining, cement, petrochemical — GRIDFIX complies with IEC 61439-2 Form 4B, the highest safety classification for low-voltage switchgear.

IEC 61439-2 Form 4B ≤10ms Response Hot-Swap Modules 400V–750V Up to 500 kVAr/Cabinet cosφ ≥ 0.99
Technical Specs ↓

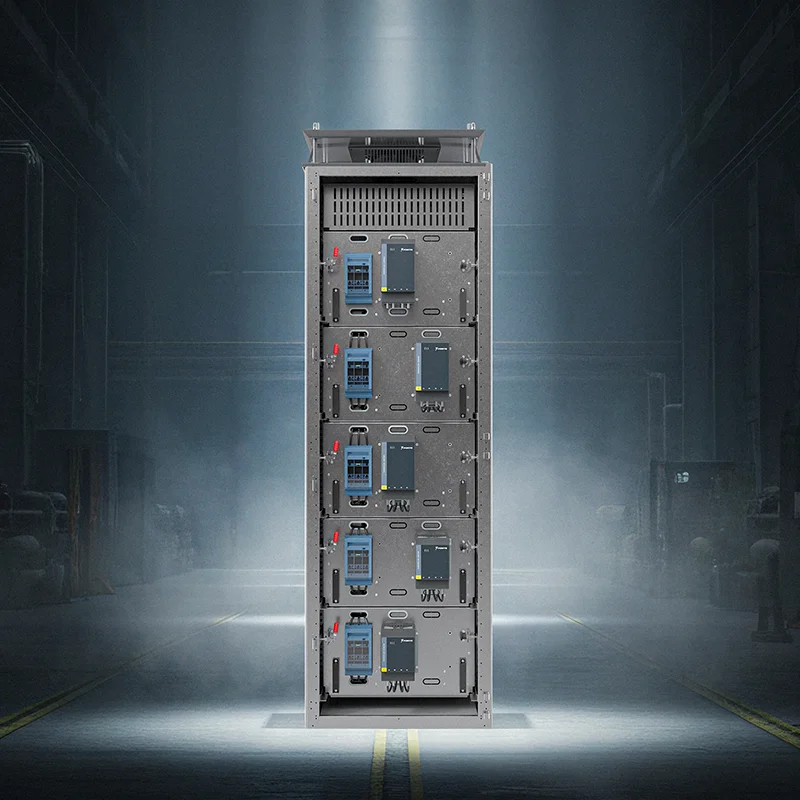

GRIDFIX Compensation Panel
GRIDFIX Advantages

The New Standard in Dynamic Compensation

In heavy industrial environments, standard compensation is never enough. GRIDFIX handles high dynamic loads, mitigates harmonics, and corrects power factor simultaneously with millisecond precision.

Ultra-Fast Response

Thyristor-based switching in ≤10ms. Zero transient effects on sensitive equipment.

Hot-Swap Modularity

Replace any module without stopping the system. 95% reduction in production downtime.

Maximum Safety

IEC 61439-2 Form 4B. Isolated busbars. Safe intervention under live power.

High ROI

Eliminates reactive power penalties. Extends equipment life. Short payback period.

Technical Data

GRIDFIX Technical Specifications

ParameterSpecification
Switching TypeThyristor module-based semiconductor
Busbar Voltage400V / 525V / 600V / 690V / 750V (±5%)
Frequency50 Hz
Connection Type3P4W
Step Power Ratings12.5 / 25 / 50 / 75 / 100 kVAr
Max. Capacity per Cabinet500 kVAr (5 × 100 kVAr modules)
Reactor Detune Ratio%7 (189 Hz) or %14 (134 Hz)
Capacitor Rated Voltage525V – 900V
Operating Temperature−10°C to +45°C
Response Time≤ 10 ms
Power Factor Correctioncosφ ≥ 0.99 (continuous)
CoolingForced-air, 220 VAC / 1,250 m³/h
ProtectionOver-voltage, over-current, high temperature
Overcurrent Withstand110% × In
IP Protection ClassIP41
Module Dimensions (50 kVAr)595 × 345 × 480 mm (W×H×D)
Module Dimensions (100 kVAr)595 × 370 × 480 mm (W×H×D)
Module MaterialGalvanized steel
StandardsIEC 61439-1, IEC 61439-2 Form 4B, IEC 62208, IEC 60529, IEC 62262
Capacitor TypeDry-type, self-healing per IEC 60831-1. Lifespan >250,000 hours
Reactor TypeDry-type resin-encapsulated, EN 61558-1 & EN 61558-2-20, TSE & CE marked
Download Datasheet (PDF)
Complete Component Range

All Passive Power Quality Products

Forte manufactures or supplies every component in the passive compensation loop — from the thyristor module to the controller relay.

Passive — Panel System

GRIDFIX Power Factor Correction Panel

Complete modular drawer-type panel. IEC 61439-2 Form 4B. Hot-swap. Thyristor-switched.

Own Manufacture
  • Voltage400–750V
  • Max. capacity500 kVAr / cabinet
  • Step sizes12.5–100 kVAr
  • Response time≤ 10 ms
  • StandardIEC 61439-2 Form 4B
View product details
Passive — Switching Module

CSM100 Capacitor Switching Module

Self-monitoring thyristor switching module. Core of GRIDFIX. Compact design, LED diagnostics.

Own Manufacture
  • Power range12.5–100 kVAr
  • Voltage400/525/600/690/750V
  • Max. current145A (FSC)
  • Overvoltage+10% tolerance
  • FeaturesLED faults, alarm relay, temp ctrl
View product details
Passive — Monitoring

Alarm Vigil Health Monitoring

Forte R&D exclusive. Smart panel health monitor with visual and audible fault indication.

Own Manufacture
  • FunctionPanel health & fault indication
  • Alert typeVisual (LED) + audible
  • DevelopmentForte R&D exclusive
  • CompatibleGRIDFIX panels
  • DatasheetOn request
View product details
Passive — Controller

PFC-7000T Reactive Control Relay

7" touchscreen DSP controller + power analyser. Full monitoring and logging. Forte-developed.

Own Manufacture
  • Display7" colour touchscreen
  • ControllerDSP, cosφ ≥ 0.99
  • AnalyserBuilt-in PQ monitor
  • LoggingAdvanced metering & logging
  • AvailabilityComing Soon
View product details
Passive — Harmonic Filtering

GRIDTUNE Detuned Reactor

High-linearity reactors protecting capacitors from harmonic damage and preventing grid resonance.

  • Detune ratio%7 (189Hz) / %14 (134Hz)
  • TypeDry-type, resin-encapsulated
  • StandardEN 61558-1 & 61558-2-20
  • CertificationTSE & CE marked
View product details
Passive — Energy Storage

GRIDCAP Capacitor

Heavy-duty self-healing capacitors for reactive power compensation with exceptional longevity.

  • TypeDry-type, self-healing
  • StandardIEC 60831-1
  • Lifespan>250,000 hours
  • OvercurrentHigh withstand capability
  • ApplicationInside GRIDFIX modules
View product details
Applications

Where GRIDFIX Performs Best

Designed for facilities with high dynamic load variation, high harmonic content, and zero tolerance for production downtime.

⚡

Iron & Steel

Rolling mills, arc furnaces, meltshops. Most demanding dynamic load profiles in industry.

⛏

Mining

High-power motors, conveyor drives, large VFD installations with fluctuating reactive demand.

🏭

Cement & Lime

Kiln drives, ball mills, crushers. Large reactive power requirements.

💧

Petrochemical

Pump stations, compressors, process drives. Continuous operation environments.

🍕

Food & Beverage

Production lines, refrigeration systems, packaging equipment.

🔔

Paper & Pulp

Large motor drives, process rollers. High uptime where hot-swap is critical.

🏢

Commercial Buildings

Malls, hotels, office towers. Cost-effective upgrade from capacitor banks.

🔌

General Manufacturing

Any facility paying reactive power penalties or experiencing voltage instability.
